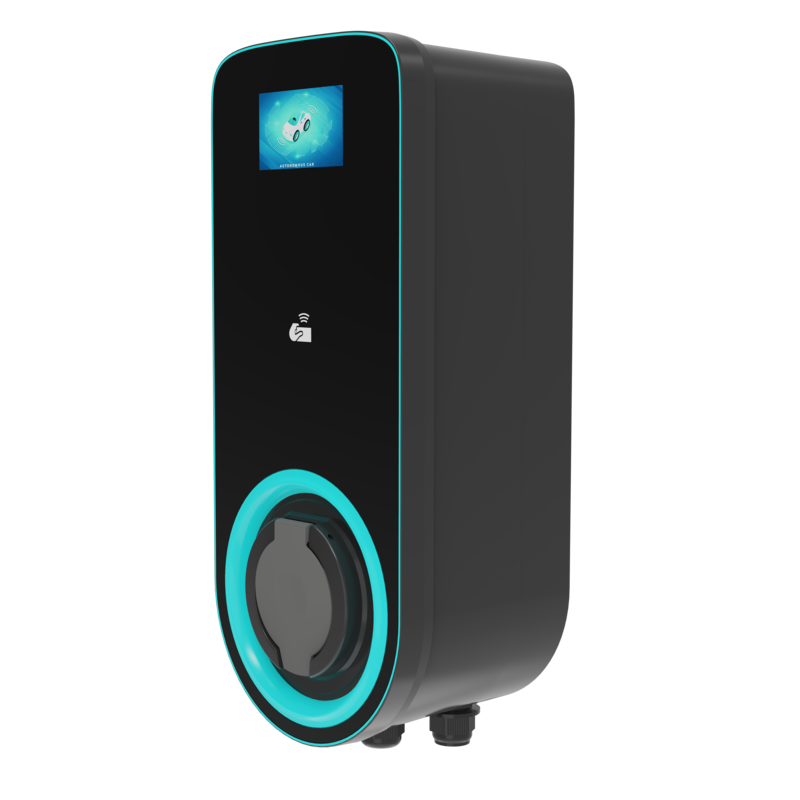

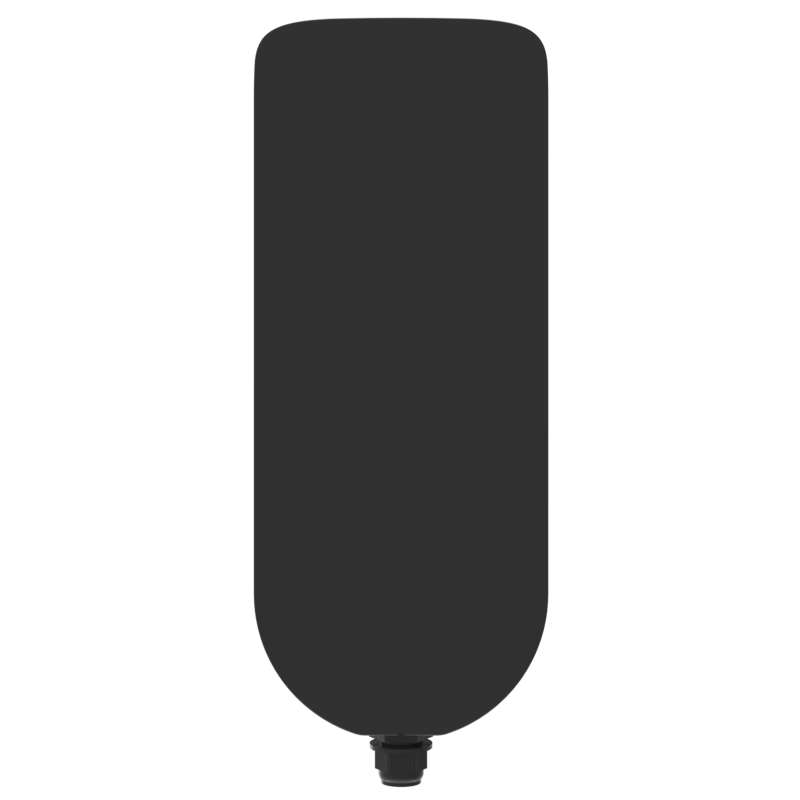

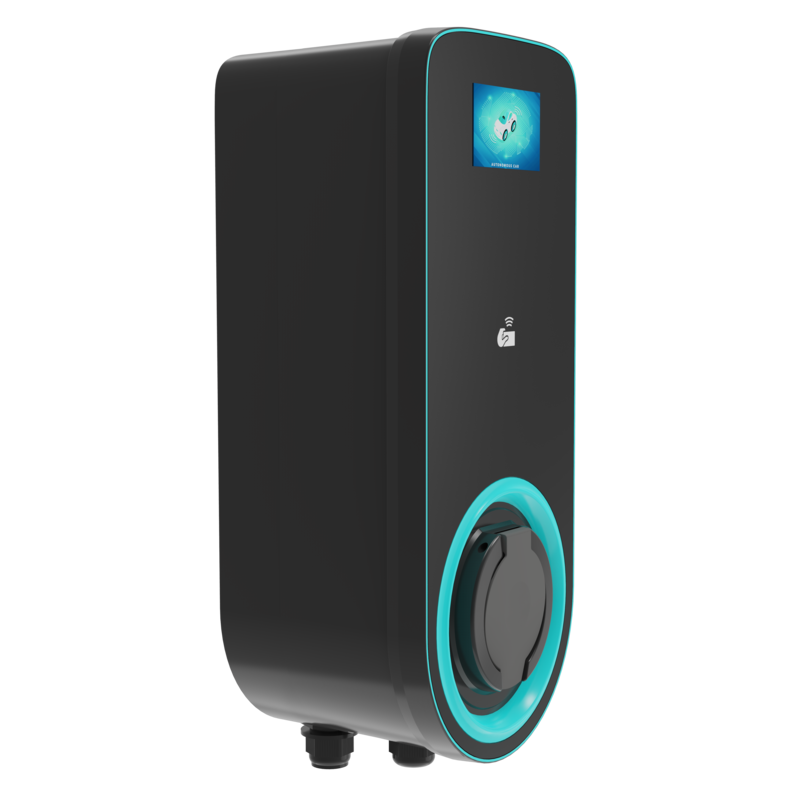

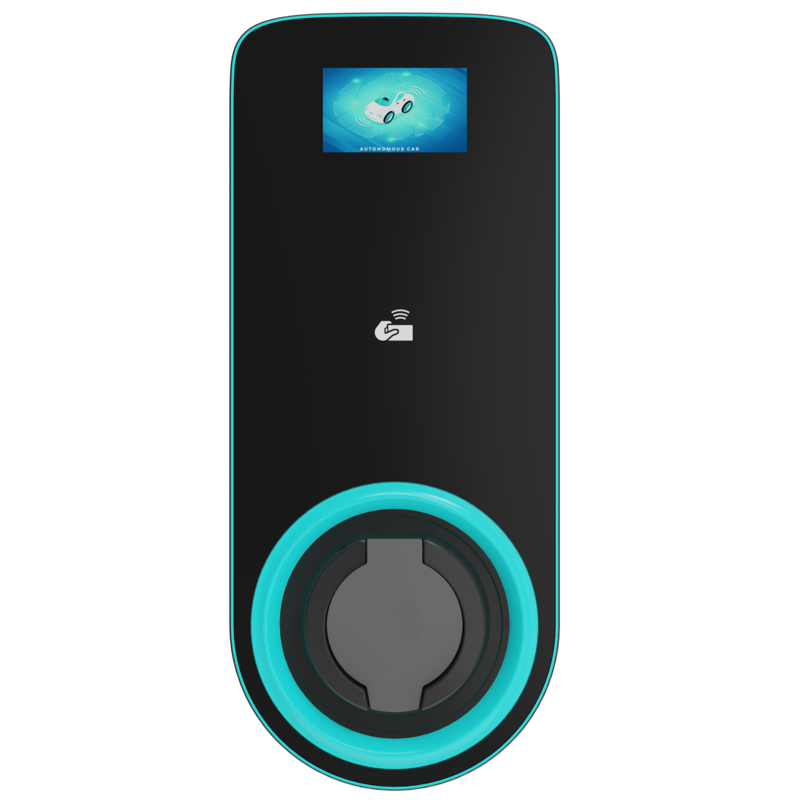

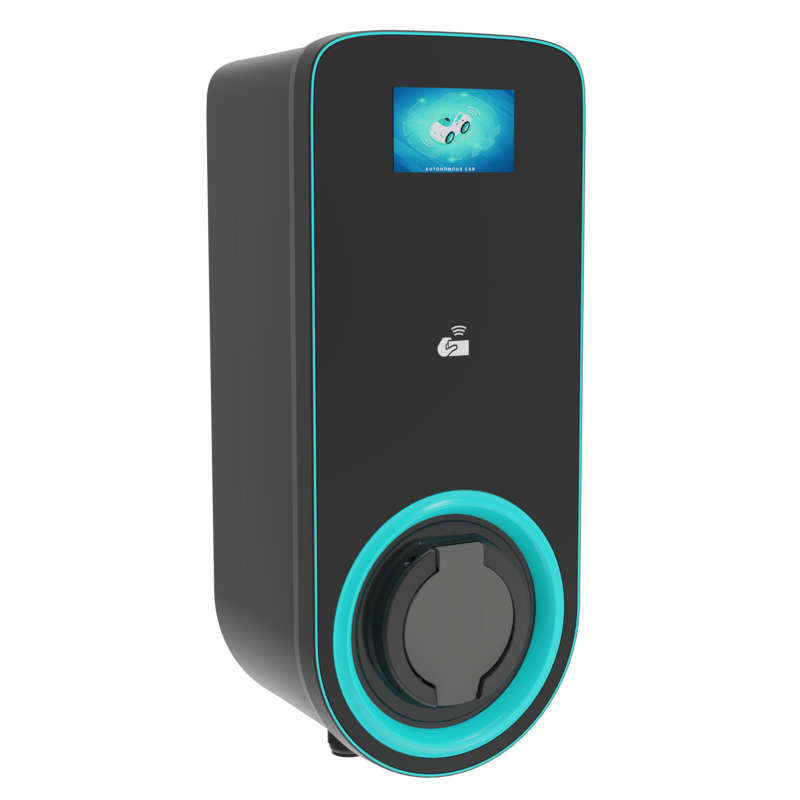

CSD-A3/CSD-A3S The Fast ac 7kw 11kw 22kw charger range-Manufacturer of Global EV Charger and BESS

Parameters

Features

Application

Scene Graph

	Model	CEVC2313/CEVC2313-S
power input	Input Type	3-phase
	Input Wiring Scheme	3P+N+PE
	Rated Voltage	400VAC±10%
	Rated Current	32A
	Grid Frequency	50HZ or 60HZ
Power output	Output voltage	400VAC±10%
	Maximum Current	32A
	Rated Power	22KW
User interface	Charge Connector	Type 2 Plug
	Cable length	5m
	LED indicator	Green/BLUE/RED
	LCD display	Display screen, Indicator light
	RFID Reader	ISO/IEC 14443 RFID Card Reader
	Start Mode	APP
Communication	Backend	Bluetooth
Safety and certification	Energy Metering	Embedded Meter Circuit Component With 1%accuracy
	Residual Current Device	DC 6mA+Type A AC 30mA
	Ingress Protection	IP54
	Impact Protection	IK10
	Cooling method	Natural Cooling
	Electrical Protection	Over/Under Voltage Protection,Over Current Protection,
		Short Circuit protection, Over/Under Temperature Protection,
		Lightning Protection,Ground Protection
	Certification	CE ROHS
	Certification and conformity	EC61851-1,IEC62196-1/-2
Environment	Mounting	Wall-mount/Pole-mount
	Storage Temperature	-40℃~+75 ℃
	Operating Temperature	-30℃~+50℃
	Max Operating Humidity	95%,non-condensing
	Max Operating Altitude	2000M
Mechanical	Product dimension	180146421mm(WDH)
	Package Dimension	420200630mm 7kg
	Weight	8.2KG
	Accesory	N/A

1、High cost-effectiveness

Ideal for both home use

2、Safety and Durable

Weather-resistant features

IK08&IP65 waterproof enclosure

3、Easy handling

Elegant design and adorable

4、High Performance

Efficiency > 95%, Power Factor > 0.98

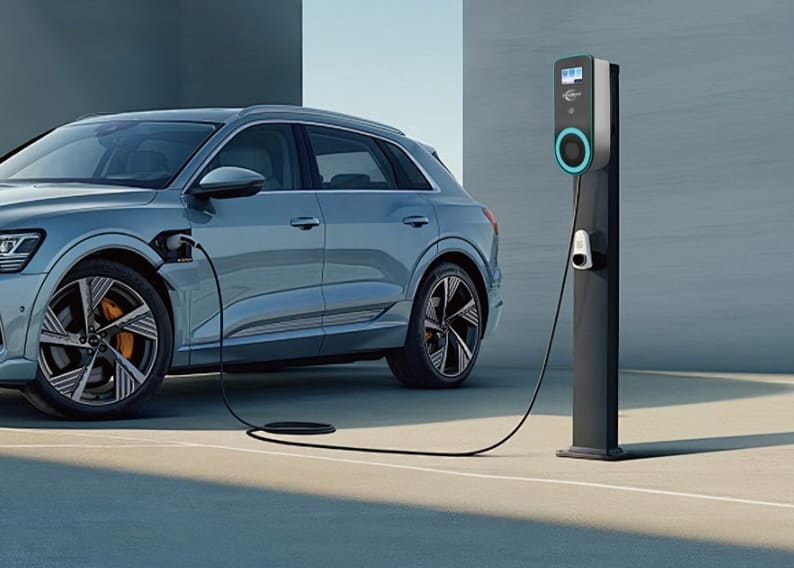

Usage Scenarios

Outdoor commercial parking lots (shopping malls, supermarkets)
Residential parking areas (single-family driveways, apartment complex courtyards)
Workplace parking bays (office buildings, corporate campuses)
Public on-street curbside charging points
Hotel, resort & hospitality facility parking zones
Above-ground and underground parking garages
University, hospital & campus parking areas
Park-and-ride & transit hub parking facilities
Fleet depots for light-duty company vehicles
Retail & restaurant customer parking
