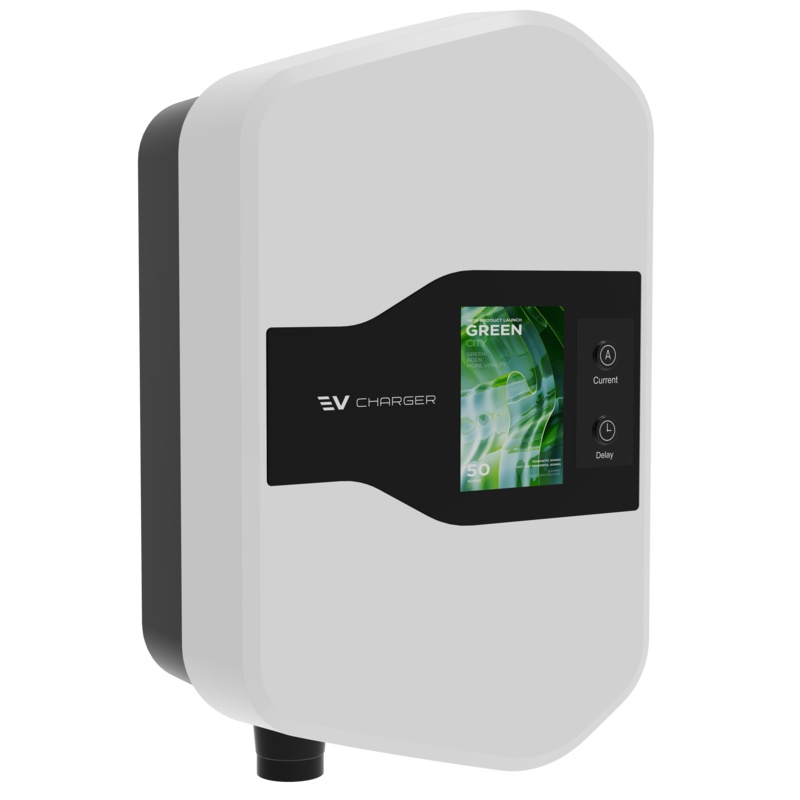

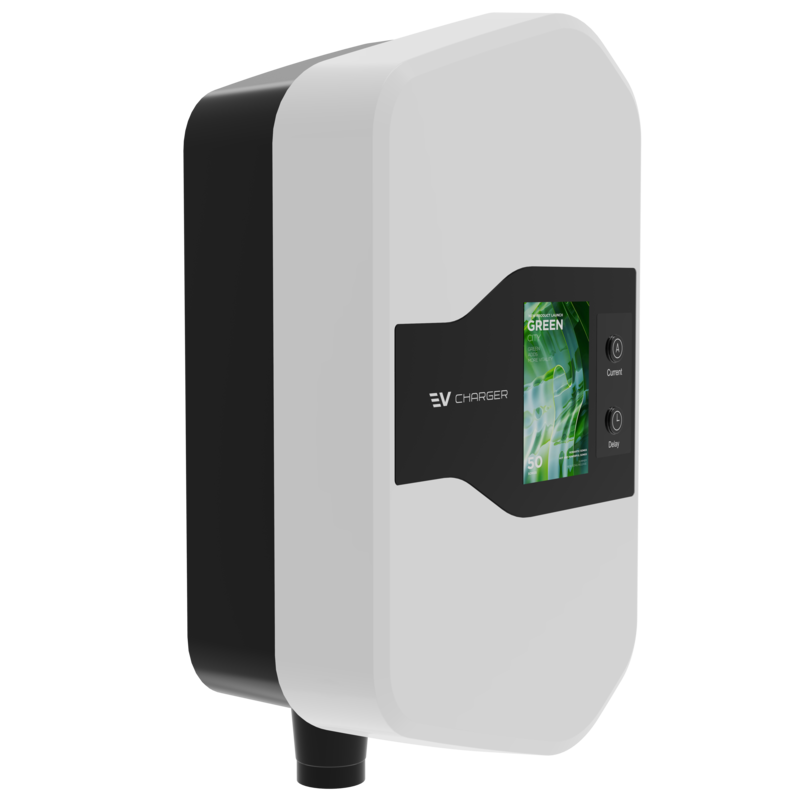

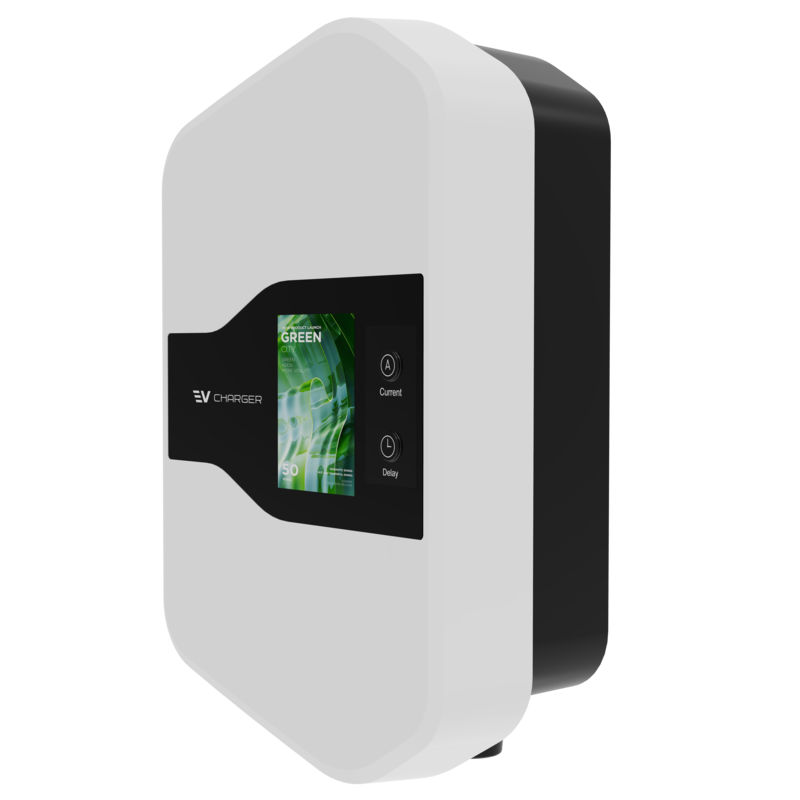

Smart AC EV Charger CSD A2
22kW Smart AC EV Charger | Wall-Mounted Type 2 Charging Station with RFID & Bluetooth
Quick Information
High Power AC Charging
Universal Charging Compatibility
Smart User Control
Accurate Energy Monitoring
Advanced Protection System
Rugged Outdoor-Ready Build
Flexible Installation Options
Certified for Global Use
| Model | CSD-A2 | |
|---|---|---|
| ⚡ Power Input | ||
| Input Type | 3-phase | |
| Input Wiring Scheme | 3P+N+PE | |
| Rated Voltage | 400VAC±10% | |
| Rated Current | 32A | |
| Grid Frequency | 50HZ or 60HZ | |
| 🔋 Power Output | ||
| Output Voltage | 400VAC±10% | |
| Maximum Current | 32A | |
| Rated Power | 22KW | |
| 🧩 User Interface | ||
| Charge Connector | Type 2 Plug | |
| Cable Length | 5m | |
| LED Indicator | Green / BLUE / RED | |
| LCD Display | Display screen, Indicator light | |
| RFID Reader | ISO/IEC 14443 RFID Card Reader | |
| Start Mode | APP / Card Swipe | |
| 📡 Communication | ||
| Backend | Bluetooth | |
| 🛡️ Safety and Certification | ||
| Energy Metering | Embedded Meter Circuit Component with 1% accuracy | |
| Residual Current Device | DC 6mA + Type A AC 30mA | |
| Ingress Protection | IP65 | |
| Impact Protection | IK08 | |
| Cooling Method | Natural Cooling | |
| Electrical Protection | Over/Under Voltage Protection, Over Current Protection, Short Circuit Protection, Over/Under Temperature, Lightning Protection, Ground Protection | |
| Certification | CE ROHS | |
| Certification and Conformity | IEC61851-1, IEC62196-1/-2 | |
| 🌍 Environment | ||

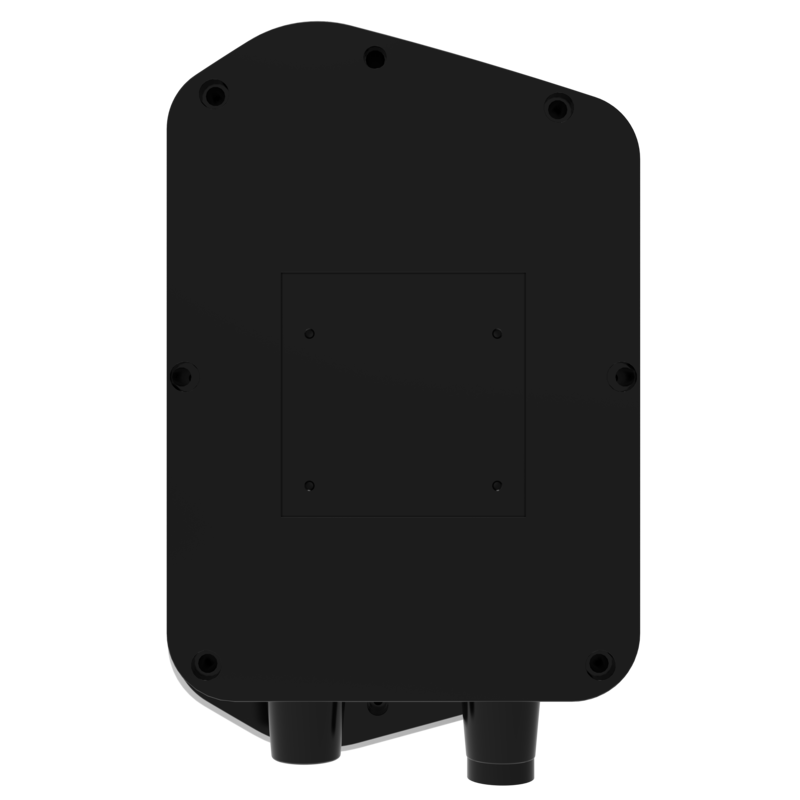

| Mounting | Wall-mount / Pole-mount | |
| Storage Temperature | -40℃ ~ +75℃ | |
| Operating Temperature | -30℃ ~ +50℃ | |
| Max Operating Humidity | 95%, non-condensing | |
| Max Operating Altitude | 2000M | |
| ⚙️ Mechanical | ||
| Product Dimension | 26.5×17×8CM (W×D×H) | |
| Package Dimension | 43×29.5×49CM / 2PCS | |
| Weight | 5KG (NET) / 6KG (GROSS) | |
| Accessory | N/A | |
CSD-A2 22kW AC EV Charger
High-performance 22kW AC EV charger with 3-phase 400VAC input, ideal for residential, commercial, and workplace use.
Equipped with Type 1, Type 2, or GB/T connector and 5-meter cable, delivering up to 32A charging current.
Features full-color display, LED status indicators, ISO/IEC 14443 RFID access, and Bluetooth APP control.
Certified to CE, RoHS, IEC61851-1, IEC62196 standards, with IP55/IK08 outdoor protection.
Key Features
High Power AC Charging
Delivers up to 22kW via 3-phase input for fast Level 2 EV charging.
Delivers up to 22kW via 3-phase input for fast Level 2 EV charging.
Universal Connector Compatibility
Supports Type 1, Type 2, and GB/T standards for broad vehicle compatibility.
Supports Type 1, Type 2, and GB/T standards for broad vehicle compatibility.
Smart User Control
Full-color screen, LED lights, RFID reader, and Bluetooth APP control included.
Full-color screen, LED lights, RFID reader, and Bluetooth APP control included.
Accurate Energy Monitoring
Built-in metering with ±1% accuracy for real-time monitoring and billing.
Built-in metering with ±1% accuracy for real-time monitoring and billing.
Full Electrical Protection
Protects against over/under voltage, overcurrent, short circuit, leakage, surge, and ground faults.
Protects against over/under voltage, overcurrent, short circuit, leakage, surge, and ground faults.
Durable Outdoor Design
IP55 waterproof and IK08 impact resistance ensures reliable outdoor performance.
IP55 waterproof and IK08 impact resistance ensures reliable outdoor performance.
Flexible Mounting
Easy to install on walls or poles in various locations.
Easy to install on walls or poles in various locations.
Global Certification
CE, RoHS, IEC61851-1, IEC62196 compliant for international deployment.
CE, RoHS, IEC61851-1, IEC62196 compliant for international deployment.
Application Scenarios
Residential Charging
Smart and safe EV charging at home garages or private parking areas.
Smart and safe EV charging at home garages or private parking areas.
Commercial Parking Areas
Ideal for shopping malls, business parks, and customer-facing locations.
Ideal for shopping malls, business parks, and customer-facing locations.
Workplace Charging Infrastructure
Enables staff and fleet charging, supporting sustainability initiatives.
Enables staff and fleet charging, supporting sustainability initiatives.
Apartments & Condos
Shared access charging with secure user control.
Shared access charging with secure user control.
EV Dealerships & Service Centers
Use for test drives, customer delivery zones, or maintenance bays.
Use for test drives, customer delivery zones, or maintenance bays.
Green Energy Projects
Compatible with solar + storage for off-grid or hybrid applications.
Compatible with solar + storage for off-grid or hybrid applications.
