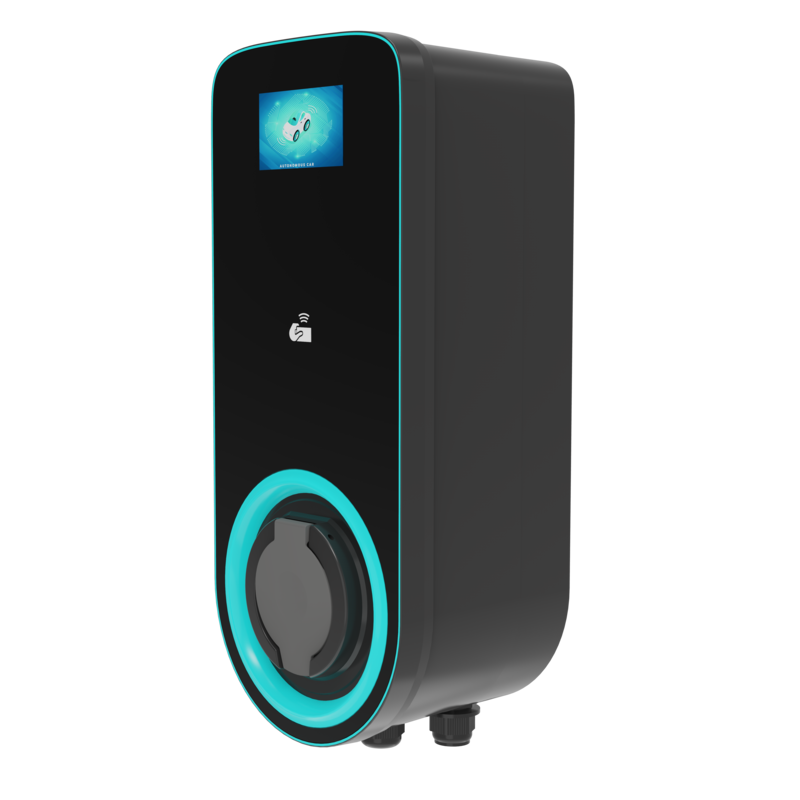

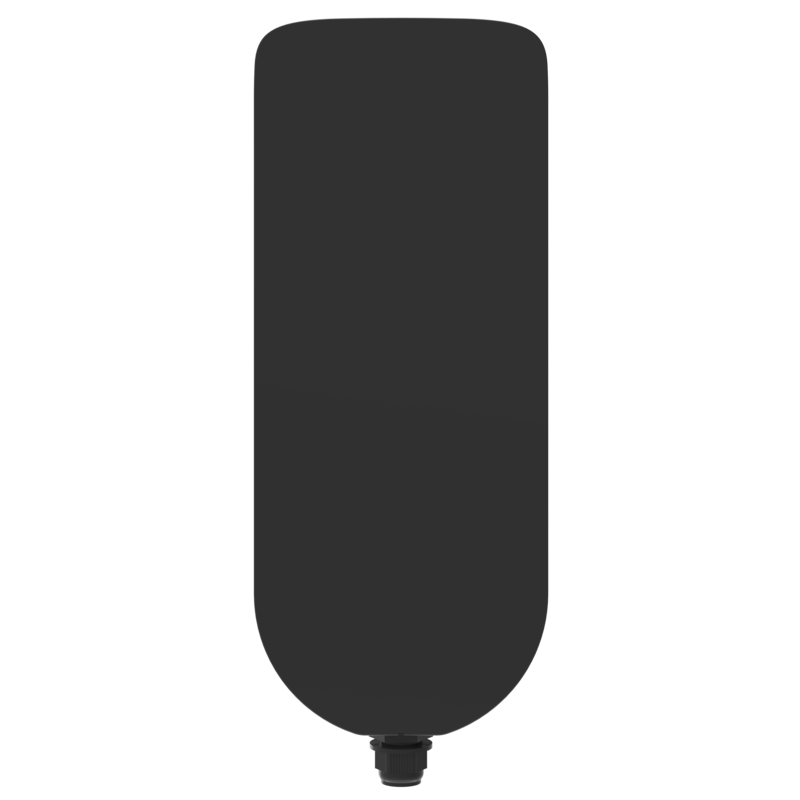

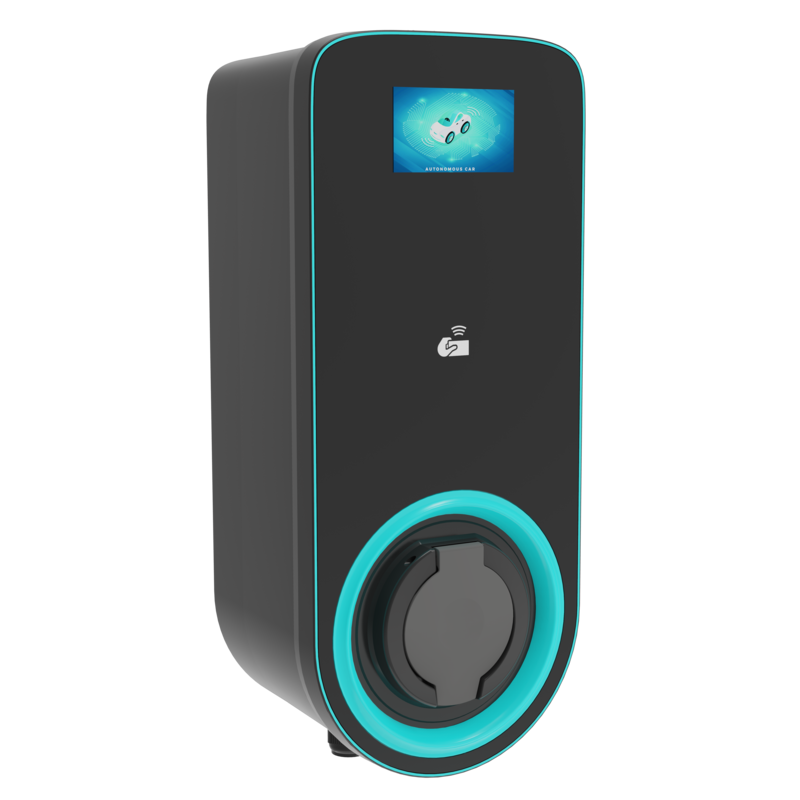

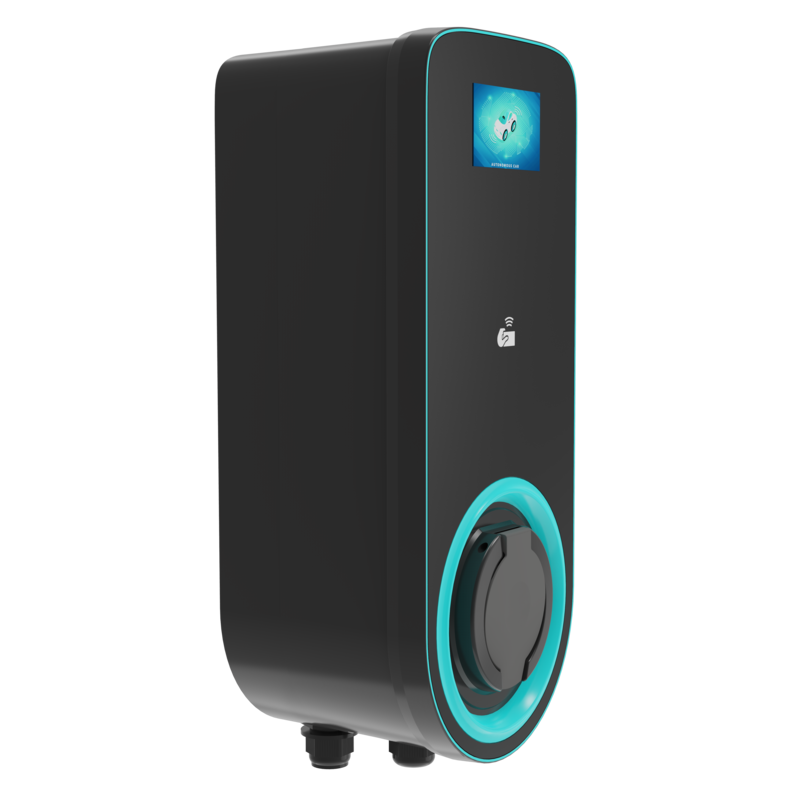

AC EV Charger CSD-A3/CSD-A3S
22kW AC EV Charger | Wall or Pole Mounted Smart Charging Station with Type 2/GBT
Quick Information
Flexible Power Options
Universal Charging Interface
User-Friendly Interface
Smart APP Control
High-Precision Energy Metering
Durable Outdoor Construction
Multiple Mounting Options
Certified & Safe
| CSD3-A3 | CSD-A3S | |
|---|---|---|
| ⚡ Power Input | ||
| Input Type | 1-phase | 3-phase |
| Input Wiring Scheme | 1P+N+PE | 3P+N+PE |
| Rated Voltage | 230VAC±10% | 380VAC±10% |
| Rated Current | 16A or 32A | 16A or 32A |
| Grid Frequency | 50Hz or 60Hz | |
| 🔋 Power Output | ||
| Output Voltage | 230VAC±10% | 380VAC±10% |
| Maximum Current | 16A or 32A | 16A or 32A |
| Rated Power | 7kW | 11kW / 22kW |
| 🧩 User Interface | ||
| Charge Connector | Type1, Type2, GB/T | |
| Cable Length | 5m | |
| LED Indicator | Green / BLUE / RED | |
| LCD Display | Display screen, Indicator light | |
| RFID Reader | ISO/IEC 14443 RFID Card Reader | |
| Start Mode | APP | |
| 📡 Communication | ||
| Backend | Ethernet / 4G (optional) | |
| 🛡️ Safety & Certification | ||
| Energy Metering | Embedded Meter Circuit (1% accuracy) | |
| Residual Current Device | DC 6mA + Type A AC 30mA | |
| Ingress Protection | IP54 | |
| Impact Protection | IK10 | |
| Cooling Method | Natural Cooling | |
| Electrical Protection | Over/Under Voltage, Over Current, Short Circuit, Temp, Lightning, Ground | |
| Certification | CE, ROHS | |
| Standard Compliance | EC61851-1, IEC62196-1/2 | |
| 🌍 Environment | ||

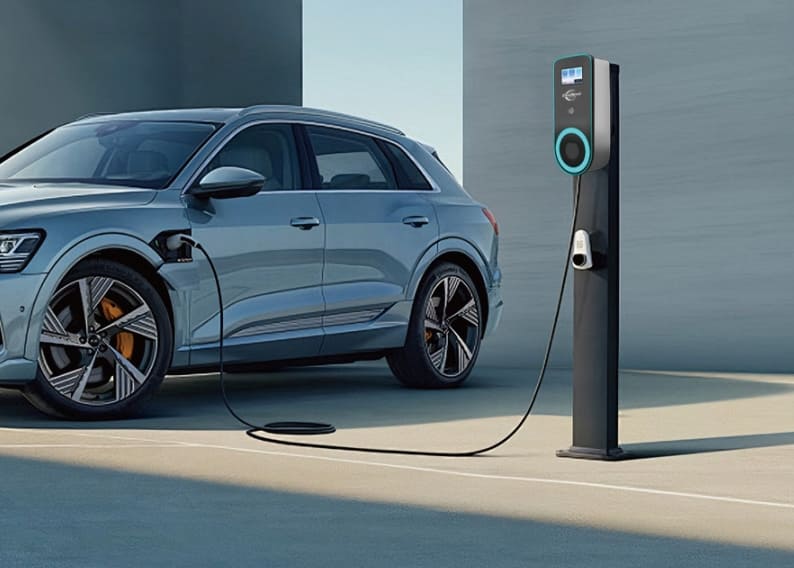

| Mounting | Wall-mount / Pole-mount | |
| Storage Temperature | -40℃ ~ +75℃ | |
| Operating Temperature | -30℃ ~ +50℃ | |
| Humidity (Max) | 95%, non-condensing | |
| Altitude (Max) | 2000m | |
| ⚙️ Mechanical | ||
| Product Dimension | 180×146×421mm | |
| Package Dimension | 605×410×195mm | |
| Weight | 6KG (Net) / 7KG (Gross) | |
| Accessory | N/A | |
CSD-A3 / CSD-A3S AC EV Charger
Versatile 22kW AC EV charger supporting both single-phase (7kW) and three-phase (11kW / 22kW) configurations, ideal for residential and semi-public applications.
Compatible with Type 1, Type 2, and GBT connectors, serving a wide range of EVs worldwide.
Features a 5-meter cable, LED indicators, LCD screen, and optional RFID authentication for secure, intuitive use.
Built-in energy metering chip with ±1% accuracy for transparent billing and monitoring.
IP54-rated and IK10 impact-resistant, designed for reliable outdoor installation.
Key Features
Flexible Power Options
Choose from 7kW (1-phase) or 11kW/22kW (3-phase) for different environments.
Choose from 7kW (1-phase) or 11kW/22kW (3-phase) for different environments.
Universal Connector Support
Works with Type 1, Type 2, and GBT plugs for international EV compatibility.
Works with Type 1, Type 2, and GBT plugs for international EV compatibility.
User Interface & Access
LED indicators, LCD display, and optional RFID access for easy operation and authentication.
LED indicators, LCD display, and optional RFID access for easy operation and authentication.
Smart APP Control
Control remotely via app: start, stop, and monitor sessions anytime.
Control remotely via app: start, stop, and monitor sessions anytime.
High-Precision Energy Meter
Accurate to ±1% for billing transparency and usage tracking.
Accurate to ±1% for billing transparency and usage tracking.
Outdoor-Ready Design
Rugged IP54 and IK10 enclosure resists dust, water, and impacts.
Rugged IP54 and IK10 enclosure resists dust, water, and impacts.
Multiple Mounting Methods
Supports both wall-mount and pole-mount installation for flexible deployment.
Supports both wall-mount and pole-mount installation for flexible deployment.
Full Electrical Protection
Includes protections for over/under voltage, leakage, overcurrent, surge, lightning, and emergency stop.
Includes protections for over/under voltage, leakage, overcurrent, surge, lightning, and emergency stop.
Application Scenarios
Residential Charging
Perfect for garages and home driveways with private EVs.
Perfect for garages and home driveways with private EVs.
Apartment Buildings
Shared or assigned chargers with secure RFID access.
Shared or assigned chargers with secure RFID access.
Commercial Parking
Ideal for malls, offices, and hotels to support green mobility.
Ideal for malls, offices, and hotels to support green mobility.
Workplace Charging
Employees and fleets can charge during working hours efficiently.
Employees and fleets can charge during working hours efficiently.
Public & Semi-Public Spaces
Suits community charging points, campuses, and municipal lots.
Suits community charging points, campuses, and municipal lots.
EV Dealerships
Excellent for delivery areas, test zones, and post-maintenance charging.
Excellent for delivery areas, test zones, and post-maintenance charging.
