Dual Socket EV AC Charging Station CSD A4
22kW Dual Socket EV AC Charging Station | OCPP Wall-Mounted Charger with RFID & LCD
Quick Information
Dual Charging Outlets
Smart Charging Control
User-Friendly Interface
Flexible Connectivity
Robust Safety Protection
Durable Outdoor Design
Flexible Installation Options
| power input | Input Type | 3-phase |
| Input Wiring Scheme | 3P+N+PE | |
| Rated Voltage | 400VAC±10% | |
| Rated Current | 32A/2x32A | |
| Grid Frequency | 50HZ or 60HZ | |
| Power output | Output voltage | 400VAC±10% |
| Maximum Current | Max 32A-adjustable | |
| Rated Power | 22KW/2X22KW | |
| User interface | Charge Connector | Type 2 Plug or Socket type |
| Cable length | 5m or N/A | |
| LED indicator | Green/BLUE/RED | |
| LCD display | 4.3 Inch Touch Color Screen(optional) | |
| RFID Reader | ISO/IEC 14443 RFID Card Reader | |
| Start Mode | Plug&Charge/RFID Card | |
| Communication | Backend | Standard: WIFI/Bluetooth Optional: 4G/Ethernet |
| Charging protocol | OCPP-1.6J | |
| Safety and certification | Residual |

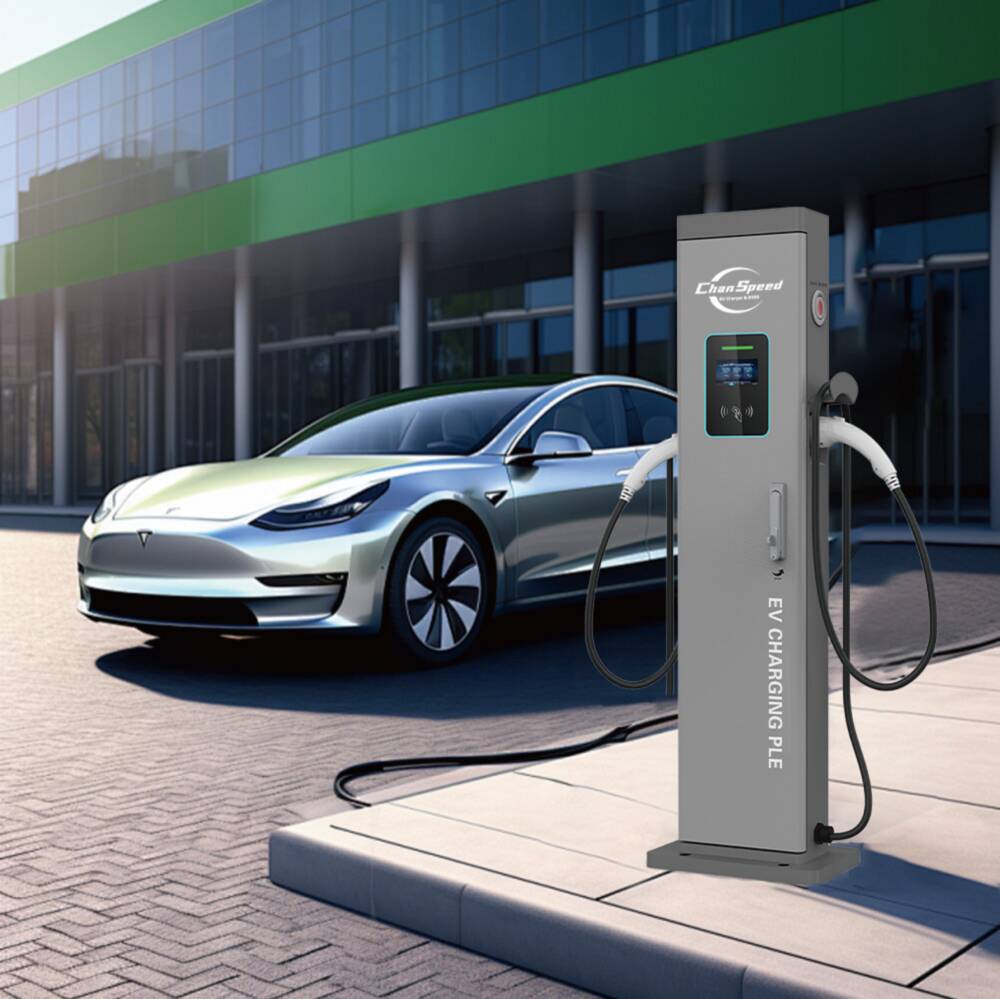

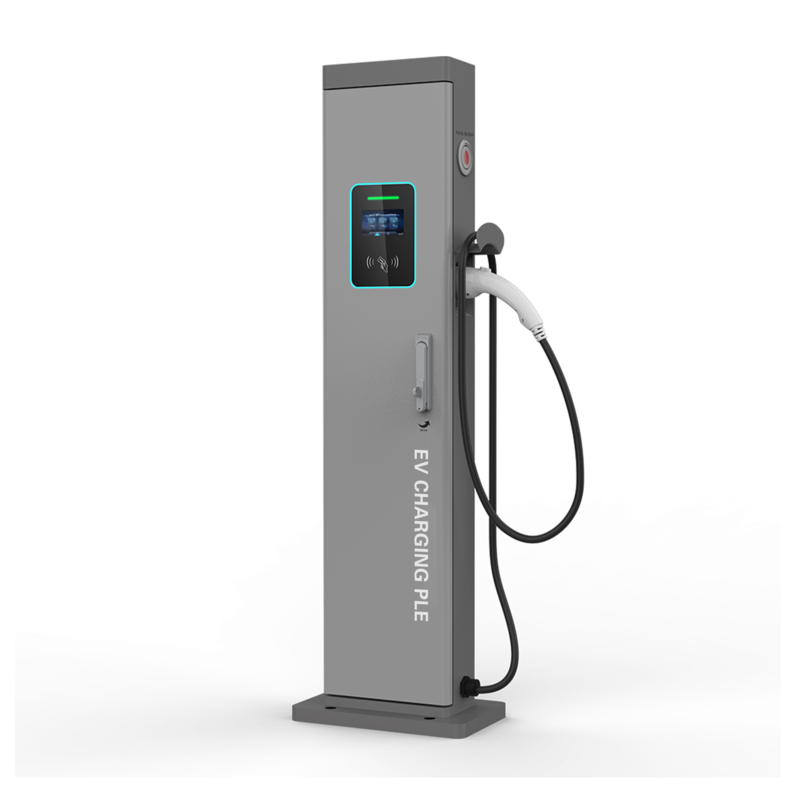

22kW Dual-Socket AC EV Charging Station
Designed for commercial and public charging, supporting simultaneous dual charging via two Type 2 connectors.
Operates on 3-phase 400VAC±10% input with adjustable 32A output current for efficient performance.
Features RFID authentication (ISO/IEC 14443), LED indicators, and optional 4.3″ color touchscreen for intuitive access.
Supports OCPP 1.6J protocol and backend communication via WiFi, Bluetooth, 4G, or Ethernet.
Built with IP55 and IK10 ratings for durable outdoor use, and natural cooling for silent operation.
Key Features
Dual Charging Outlets
Charge two vehicles at once with Type 2 plugs, each supporting up to 22kW.
Charge two vehicles at once with Type 2 plugs, each supporting up to 22kW.
Smart Charging Control
Fully compliant with OCPP 1.6J for backend system integration and smart load management.
Fully compliant with OCPP 1.6J for backend system integration and smart load management.
User-Friendly Interface
Equipped with RFID card reader, LED indicators, and optional 4.3-inch touch display for real-time interaction.
Equipped with RFID card reader, LED indicators, and optional 4.3-inch touch display for real-time interaction.
Flexible Connectivity
Compatible with WiFi, 4G, Bluetooth, and Ethernet for diverse networking environments.
Compatible with WiFi, 4G, Bluetooth, and Ethernet for diverse networking environments.
Robust Safety Protection
Integrated DC 6mA + Type A AC 30mA RCDs with full voltage and current protections.
Integrated DC 6mA + Type A AC 30mA RCDs with full voltage and current protections.
Outdoor-Ready Build
IP55 waterproof, IK10 impact resistant, operating in -30℃ to +50℃ without active cooling.
IP55 waterproof, IK10 impact resistant, operating in -30℃ to +50℃ without active cooling.
Flexible Mounting Options
Suitable for wall or pole installation depending on site needs.
Suitable for wall or pole installation depending on site needs.
Application Scenarios
Commercial Parking Lots
Ideal for shopping malls, office buildings, and business centers.
Ideal for shopping malls, office buildings, and business centers.
Residential Communities
Shared charging for apartments, gated areas, and housing complexes.
Shared charging for apartments, gated areas, and housing complexes.
Hotels and Hospitality
Adds EV convenience for guests and travelers.
Adds EV convenience for guests and travelers.
Workplace Charging
Corporate EV support for employees and green initiatives.
Corporate EV support for employees and green initiatives.
Fleet Charging
Designed for commercial fleet operations requiring dual-vehicle simultaneous charging.
Designed for commercial fleet operations requiring dual-vehicle simultaneous charging.
