All-in-One Liquid-Cooled Energy Storage System CSD-E2
2150/2320 All-in-One 2150kWh–2320kWh Liquid-Cooled Energy Storage System | 1MW ESS Solution
Quick Information
Large Capacity Configurations
High Output Performance
Advanced Thermal Management
High Protection Ratings
Long Lifecycle & Deep Discharge
Dual-Level Fire Protection
Wide Environmental Tolerance
Multiple Communication Protocols
| Product Model | CSD-E2 2150 | CSD-E2-2320 |
| DC Side Parameters | ||
| Cell Type | LFP Energy Storage-Dedicated Cells | |
| Grouping Method | 1P240S*10 | 1P260S*10 |
| Nominal Energy | 2150kWh | 2320kWh |
| Operating Voltage | 600V~876V | 650V~950V |
| Operating Voltage | 0.5P | |
| AC Side Parameters | ||
| AC Rated Power | 1000kW | |
| AC Current Distortion Rate | < 3% | |
| Rated Grid Voltage | 380V | |
| Rated Grid Frequency | 50Hz | |
| System Parameters | ||
| System Efficiency | ≥92% (excluding auxiliary consumption) | |
| Depth of Discharge (DOD) | 100% | |
| Cycle Life | ≥10,000 times | |
| Protection Level (IP Rating) | IP54 (PACK: IP67) | |
| Cooling Method | Liquid cooling | |
| Fire Protection System | System-level + PACK-level two-stage fire protection | |
| Communication Mode | Ethernet.CAN.RS485 | |
| Noise Level | <75dB | |
| Ambient Temperature | -20℃~55℃ | |
| Ambient Humidity | 5%~95% | |
| Operating Altitude | <2000m | |
| Dimensions | DC Side: 6058×2438×2591 (mm) AC Side: 1300×1300×2400 (mm) |
|
| Weight | 21000kg | |

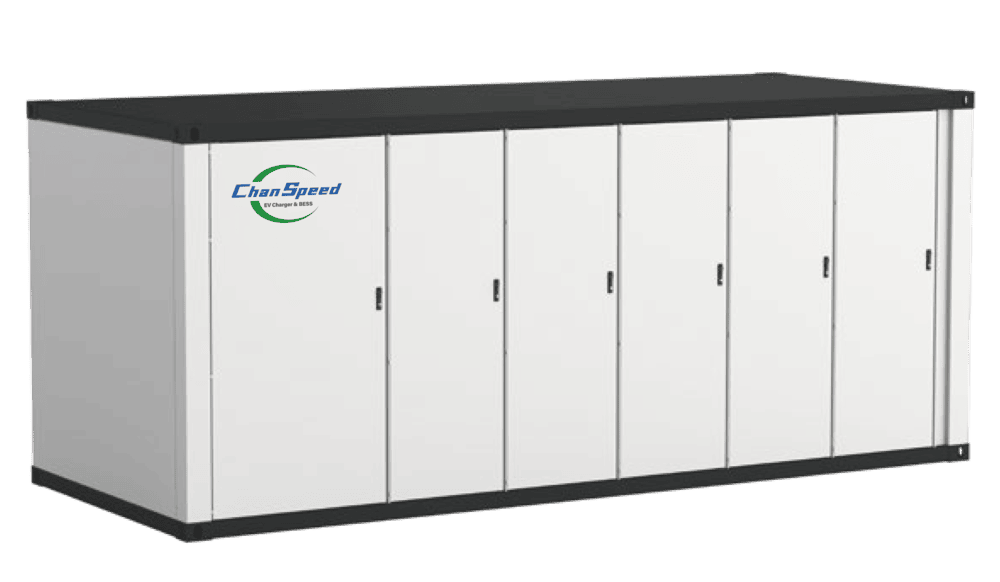

CSD-E2 2150/2320: High-Capacity Liquid-Cooled Energy Storage System
All-in-one utility-scale ESS solution available in 2150kWh and 2320kWh configurations – designed for large-scale and commercial applications.
Equipped with 1000kW AC output and system efficiency ≥92%, delivering consistent, high-performance energy dispatch.
Liquid-cooled thermal management ensures stable operation in high-temperature and harsh environments.
Dual-level fire protection system (system + PACK) guarantees maximum safety and reliability.
High protection ratings: IP54 (system) and IP67 (battery) allow safe outdoor deployment.
10,000+ lifecycle at 100% DOD ensures long-term value and durability in demanding use cases.
Wide environmental tolerance: Operates from -20°C to 55°C and supports altitude up to 2000m.
Supports Ethernet, CAN, RS485 – easily integrates with EMS/BMS platforms for monitoring and control.
Applications
Utility-Scale Energy Storage: Peak shaving, grid frequency regulation, and renewable energy time shifting.
Renewable Energy Integration: Stores excess wind/solar energy and dispatches when needed.
Commercial & Industrial Sites: Reduces peak demand charges and provides emergency backup.
Microgrids & Remote Islands: Enables stable off-grid operations and power autonomy.
EV Charging Support: Stabilizes load and buffers energy demand for large charging stations.
