Integrated Portable Energy Storage System CSD-S1
141kWh Integrated Portable Energy Storage System with 120kW DC Fast Charger
Quick Information
All-in-One Integrated Design
Multi-Standard Compatibility
High Power Output
Smart User Interface
Remote Management Ready
Efficient Thermal Management
Durable & Weatherproof
Mobility & Flexibility
| Product Parameters | |
|---|---|
| Product model | CSD-S1 |
| Energy storage capacity | 141kwh LifePO4 |
| Output power | 120kw constant power |
| Output voltage | DC200V~750V |
| Output current | 0~250A |
| Display screen | 7-inch touch screen |
| Charging gun | GBT(CCS1/CCS2/ChadeMO) |
| Gun line length | 7m. |
| Operation mode | Single-Alone/OCPP1.6J |
| System recharge | DC charging gun |
| Cooling method | liquid cooling |
| Product size | 2250*1130*1030mm |
| Weight | 1390KG |
| Working temperature | -10C~60C |
| Protection grade | IP54 |
CSD-S1: All-in-One Mobile Energy Storage + DC Fast Charging System
Compact & Integrated: Combines a 141kWh LiFePO4 battery with a 120kW DC fast charger, designed for mobile or off-grid use.
Multi-standard Charging: Supports CCS1, CCS2, GBT, CHAdeMO – compatible with all mainstream EVs.
High Output Performance: 200–750V DC output range, up to 250A current – rapid charging guaranteed.
User-Friendly Interface: 7″ touchscreen + 7m charging cable, intuitive operation & real-time monitoring.
OCPP-1.6J Compatible: Enables backend integration for network management and fleet use.
Advanced Cooling: Liquid cooling system ensures long-term stability and heat control.
Outdoor-Ready: IP54 protection, -10°C to 60°C operating range – suitable for field or emergency use.
Mobile & Compact: 2250×1130×1030mm, 1390kg – fits mobile trucks, temporary stations, and constrained sites.
Applications

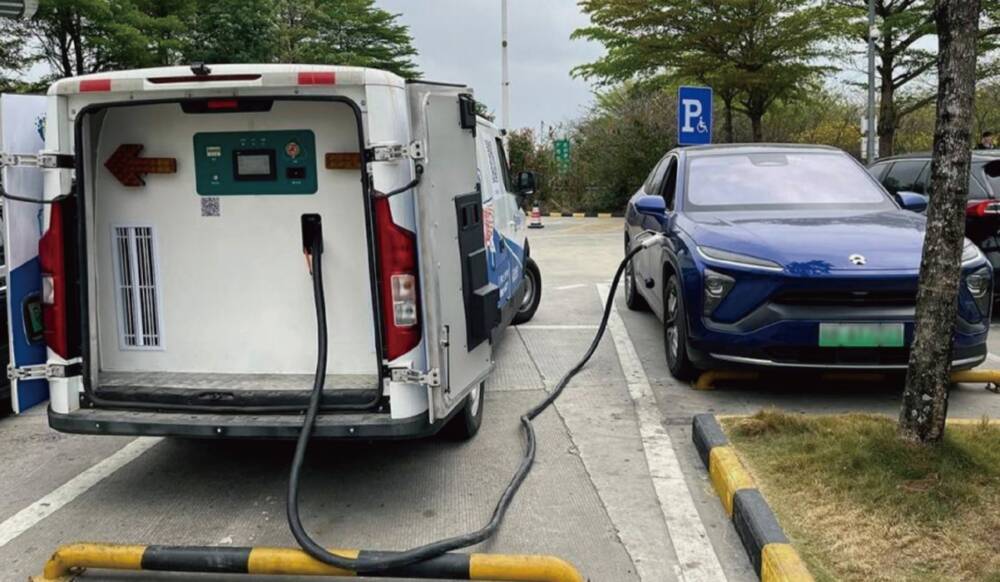

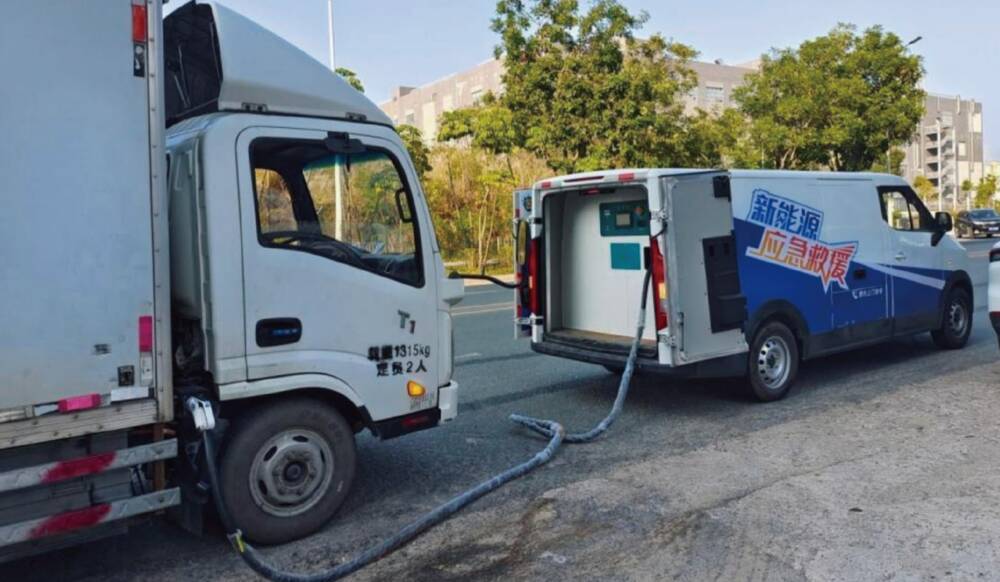

Mobile EV Charging Trucks: On-the-go EV charging for roadside or remote locations.
Emergency Backup: Acts as a mobile power station during grid outages or disasters.
Event-Based Charging: Use at expos, festivals, construction sites, and temporary projects.
Grid-Limited Locations: Perfect for areas with insufficient grid support for large chargers.
Fleet Yards / Depots: Reliable semi-permanent or mobile solution for fleet charging.
